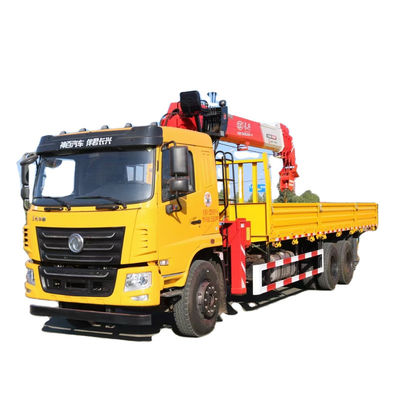

12 ton straight boom Crane information | Crane Specification | |||||
1 | Crane Brand | Chang xing | Chang xing | |||
2 | Arms sections | 4 | 5 | |||
3 | Max lifting capacity(kg) | 1200kg (2.5m) | 1200kg (2.5m) | |||
4 | Max. Lifting moment | 30 ton.m | 30 ton. m | |||
5 | Working radius(m) | 15.5m | 17.7m | |||
6 | Max lifting height(m) | 16.9m | 20.1m | |||
7 | Crane weight(kg) | 4670kg | 5470kg | |||
8 | Operation pressure | 31mpa | 31mpa | |||
9 | span(m) | 4.8m | 4.8m | |||
10 | Rotation angle | 360 full rotation | 360 full rotation | |||
Chassis information | ||||||||
Item | Data | Item | Data | |||||
1 | Applicable crane | 10 / 12 ton | Max Speed | 89km/h | ||||
2 | Chassis Brand | Dongfeng | Axles | 3 | ||||
3 | Rated loading weight | 9105KG | Cab | single cab, 2 crew seat | ||||
4 | Curb weight | 15700/16200 kg | Engine Brand | Yu chai, Kang ming si | ||||
5 | Dimensions | 1200 x 255/259x 388/378 cm | Emission Standard | Euro 3/4/5 | ||||
6 | Cargo body dimension | 840/720x 270/240 x55 cm | Horse Power | 240/245hp | ||||
7 | Wheelbase | 435+130 cm, 540+130 cm | Emissions | 6800/6700ml | ||||
8 | Drive type | 6x4 | Chassis Brand | Dongfeng / Shac Man / Faw / Howo /camc optional | ||||
