Χαρακτηριστικά

Προδιαγραφές

Feature: TRUCK CRANE

Condition: New

Application: Construction

Rated Loading Capacity: 20T

Rated Lifting Moment: 16

Max. Lifting Height: 8.5

Span: 360

Warranty: 1 Year

Hydraulic Cylinder Brand: jiaheng

Hydraulic Pump Brand: jiaheng

Hydraulic Valve Brand: jiaheng

Engine Brand: DONGFENG

UNIQUE SELLING POINT: High off road ability

Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction worksÂ , Energy & Mining

After-sales Service Provided: Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Overseas service center available

Πιστοποίηση: ISO

Product name: Military Crane

Crane type: Truck Crane Mobile Crane Hydraulic Crane

Color: Customer Requirements

Βασικές πληροφορίες

Πιστοποίηση: ISO

Πληρωμής & Αποστολής Όροι

Packaging Details: Nude cargo,the vehicle surface anti-rust wax coating.

Supply Ability: 500 Unit/Units per Year

Περιγραφή προϊόντων

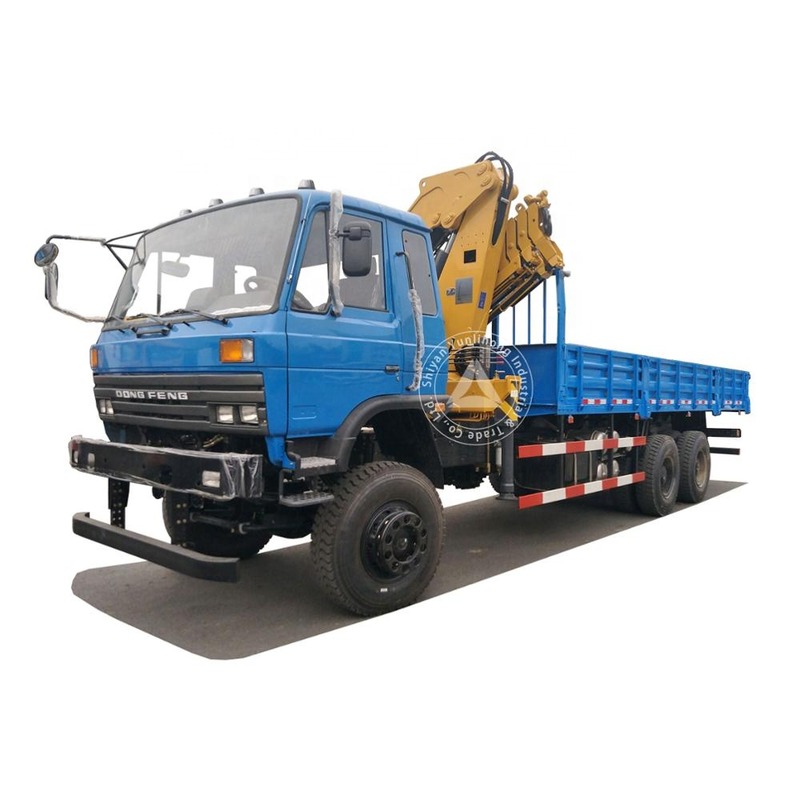

Yunlihong 6x6 10 Ton Knuckle Boom Truck Mounted Crane

Medium Duty Load

This truck is mainly used in constrction,Load weight 20 ton.

Powerful Engine

Cummins engine 300hp, displacement 8300cc .This brand engine have after sale-service in all over the world, so it's convinence for maintenance.

Manaul Transmission

Fast brand gear box, it's Eaton technology. 9 gears with synchronizer, easier to operate.

Strong Axle

Front Benz 9 ton dongfeng DANA Axle, rear 16 ton Benz axle x 2.

Strengthen Frame

In order to improve the bearing capacity ,we use high strength steel and double deck.

Crane

Knuckle boom crane, max lift weight 10 ton.

Crane

6x6 Crane Truck Default Specification
Overall Parameters
Truck model	YLH5252A	Wheel base	5200mm+1450mm
Loading capacity	20000kg	Overall dimension(L×W×H)	1153025503830mm
Gross Vehicle Mass	25000kg	Max. speed	90km/h
Cabin
Cabin Model	LHD,3 passengers, 1 sleeper	Air Condition	with A/C
Engine
Brand & Model	Cummins @ C300 33	Intake way	Turbo inter-cooling
Rated power & speed	300HP(221kw) &2200rpm	Max. torque	1125N.M
Engine type	in-line,4 stroke,water-cooled	Fuel injection pump	Mechanical Pump
Displacement	6 cylinder,8.3L,diesel	Emission standard	Euro 2
Gearbox
Brand & Model	Fast`Fuller @ RT-11509C
Type	Manual, 9 forward gear,1reverse gear,default max. Input torque 1500N.m
Gearbox ratio	Forward: 2.42,8.29,6.08,4.53,3.36,2.47,1.81,1.35,1.00
	Reverse: 12.99
Chassis Frame & Suspension System
Chassis frame	Frame breadth 300mm,double-deck sheet(8mm+8mm)
Suspension	Leaf spring: 10/10
Front axle	Benz 9T front axle×1
Rear axle	Benz 16T rear axle×2
Bodyworks
Fuel Tank	Standard
Air Filter	Desert filter

Working State Diagram

Carbin

Chassis

Certifications

Certificate
